| Place of Origin: | China |
| Brand Name: | Hengzi |
| Certification: | CE |
| Model Number: | HGPN/HGPF |
| Minimum Order Quantity: | 5 units |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 pcs/CTN |
| Delivery Time: | 15-30 DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 10 UNITS PER 7 DAYS |
| Temperature Control Range: | Room Temperature +5℃-60℃ | Power: | 1Φ 220V 50Hz |
|---|---|---|---|
| Inner Material: | SUS304 Stainless Steel | Outer Shell Material: | Cold-rolled Steel Sheet Surface Spray |
| Timing Range: | 0-9999min | Feature: | Inner Round Cornered Design, Convenient To Clean |
| High Light: | laboratory incubator,cell culture incubator |
||

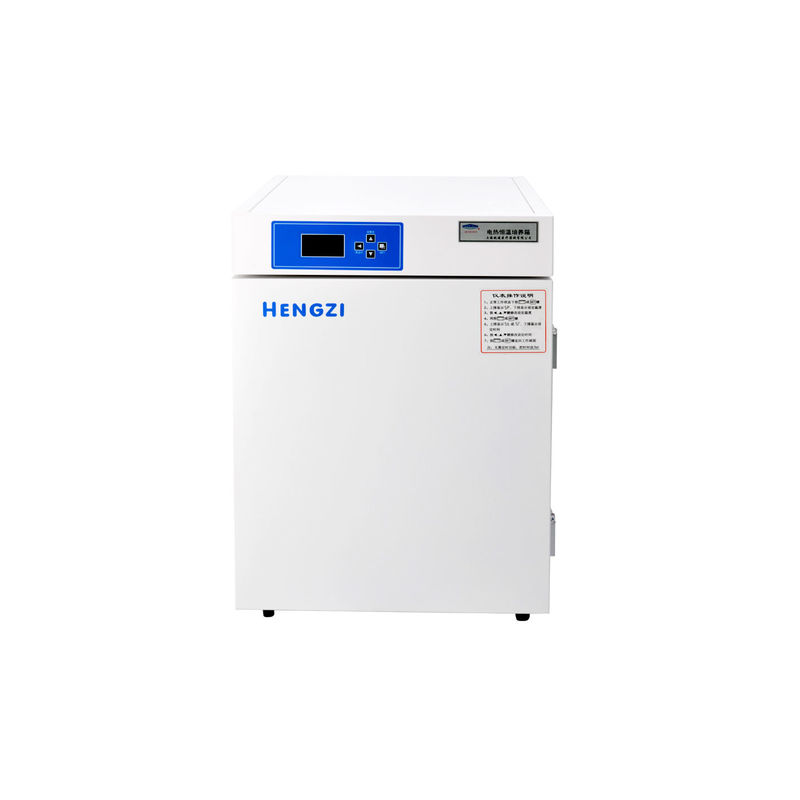

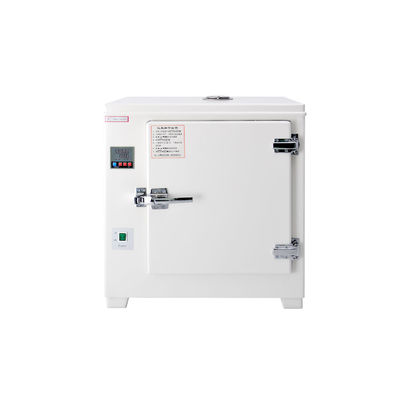

Water-Insulation Electrothermal Thermostatic Incubator
Scope of Application:
The incubator can provide an even and stable thermostatic environment in the work room, which is suitable for microbe incubation, seed geminating and other thermostatic experiment.
Structure Characteristics:
Timing range: 0-9999min
Parameters auto saving system and automatic start after power interruption
Independent external temperature protection device
Independent external temperature protection alarm module by SMS( not inculding the data flow card) which can be inquired by mobile APP
RS485 communication serial port for HGPF
RS485 to USB Transfer interface for HGPF
Micro pinhole printer or micro thermal printer for HGPF
Model Specification:
| Model | HGPN-32 |
HGPN-50 HGPN-II-50 |
HGPN-80 HGPN-II-80 |
HGPN-163 HGPN-II-163 |
HGPN-270 HGPN-II=270 |
HGPF-50 | HGPF-80 | HGPF-163 | HGPF-270 |
| Temperature Control Range | Room temperature +5℃-60℃ | ||||||||
| Temperature Uniformity | ≤±1℃ | ≤±0.5℃ | |||||||
| Temperature Fluctuation | ≤±0.5℃ | ≤±0.3℃ | |||||||
| Heatin Mode | Three-side Water-Jacket Bottom heating | Four-side Water-Jacket Multi-dide heating | |||||||
| Inner Cyclic Mode | Natural Convection | Breeze stirring method | |||||||
| Alarm Type | Over temperature alarm and Temperature probe damage alarm | Over temperature alarm ,Temperature probe damage alarm and Water level alarm | |||||||
| Temperature Controller | LED display and P.I.D. controller | LCD display and P.I.D. controller | |||||||
|
Work Room Dimension WxDxH (cm) |
30*30*35 | 35*35*40 | 40*40*50 | 50*50*65 | 60*60*75 | 35*35*40 | 41*40.5*51 | 50.5*45.5*70 | 60*60*75 |
| Capacity(L) | 31 | 49 | 80 | 162 | 270 | 49 | 84 | 160 | 270 |
|
Outline Dimension WxDxH (cm) |
52*36*53 | 60*49*62 | 65*54*72 | 75*64*88 | 85*74*98 | 50*46*72 | 57*59*85 | 67*64*103 | 77*79*108 |
| Shelves | 2 | 2 | 2 | 3 | 3 | 2 | 2 | 3 | 3 |
| Rated Power (W) | 120 | 330 | 440 | 660 | 770 | 437 | 502 | 580 | 688 |
| Power | 1Φ 220V 50Hz | ||||||||
