| Place of Origin: | China |
| Brand Name: | Hengzi |
| Certification: | CE |
| Model Number: | HGZF-101 |
| Minimum Order Quantity: | 5 units |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 pcs/CTN |
| Delivery Time: | 15-30 DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 10 UNITS PER 7 DAYS |
| Name: | Electrothermal Thermostatic Fanned Dryer | Temperature Fluctuation: | ±1℃ |
|---|---|---|---|
| Temperature Range: | 50℃-300℃ | Temperature Uniformity: | ≤Max Working Temperature ±2.5% |
| Inner Cyclic Mode: | Forced Convection With Bottom Heating | Warranty: | 1 Year |
| High Light: | thermostatic drying oven,high temperature drying oven |
||

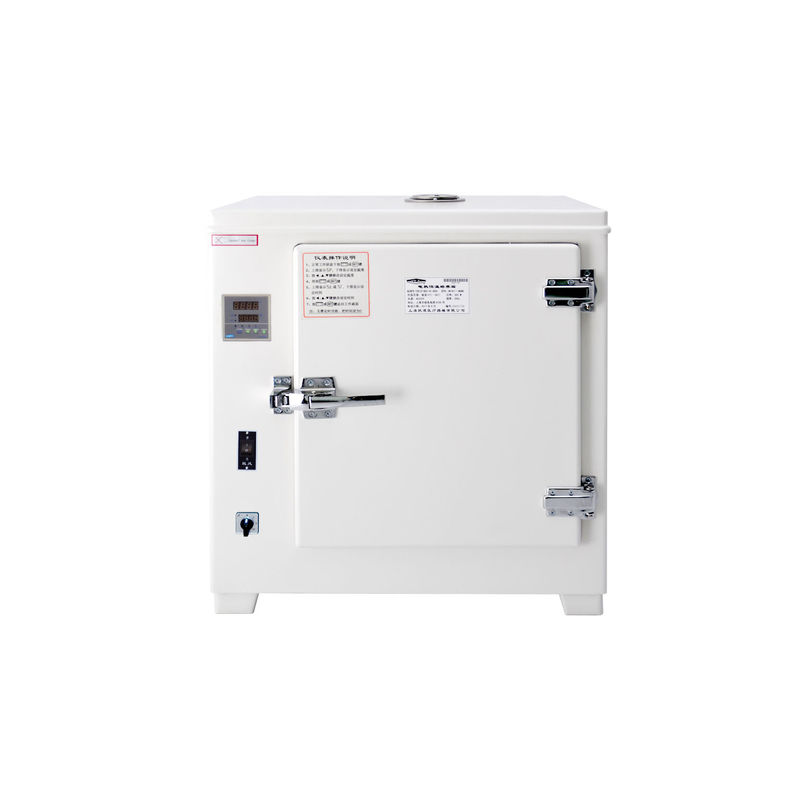

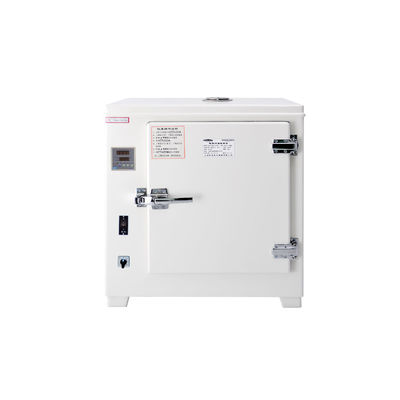

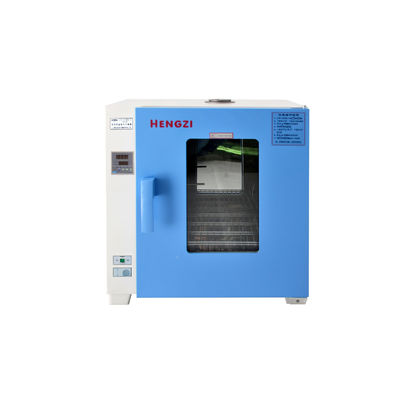

Electrothermal Thermostatic Fanned Dryer
Scope of Application:
This equipment is used for drying, baking and disinfection in industrial and mining enterprises, chemical laboratory, R&D institution, etc.
Structure Characteristics:
HGZF-101: Overhead air outlet Easy to switch, Glass inner door and no outer observation window
HGZF-101: Bottom resistance wire heating with Temperature switch to choose suitable heating power
HGZF-101: Natural convection when fan is shut
HGZF-II HGZF-II/H: Inlet and outlet at back side, Outer observation window and no glass inner door
HGZF-II HGZF-II/H: Stainless steel tube heater
Optional device:
RS485 communication serial port
Micro pinhole printer
RS485 to USB Transfer interface
Model Specifications:
| Model | HGZF-101-0 | HGZF-101-1 | HGZF-101-2 | HGZF-101-3 | HGZF-101-4 | HGZF-101-5 |
| Temperature Range | 50℃-300℃ | |||||
| Temperature Fluctuation | ±1℃ | |||||
| Temperature Uniformity | ≤Max working temperature ±2.5% | |||||
| Inner Cyclic Mode | Forced convection with Bottom heating | |||||
| Alarm Type | Over temperature alarm and Temperature probe damage alarm | |||||
|
Work Room Dimension WxDxH (cm) |
35*35*35 | 45*35*45 | 55*45*55 | 60*50*75 | 80*80*100 | 100*80*120 |
| Capacity(L) | 42 | 70 | 136 | 225 | 640 | 960 |
|
Outline Dimension WxDxH (cm) |
67*53*63 | 77*53*75 | 87*63*85 | 92*68*105 | 112*98*130 | 132*98*150 |
| Shelves | 2 | 2 | 3 | 3 | 3 | 3 |
| Rated Power (W) | 1600 | 2400 | 3000 | 4000 | 6000 | 7500 |
| Power | 1Φ 220V 50Hz | 3Φ 380V 50Hz | ||||
| Model |
HGZF-II-101-0 HGZF-II/H-101-0 |
HGZF-II-101-1 HGZF-II/H-101-1 |
HGZF-II-101-2 HGZF-II/H-101-2 |
HGZF-II-101-3 HGZF-II/H-101-3 |
HGZF-II-101-4 HGZF-II/H-101-4 |
HGZF-II-101-5 HGZF-II/H-101-5 |
| Temperature Range |
HGZF-II: RT+10℃-200℃ HGZF-II/H: RT+10℃-300℃ |
|||||
| Temperature Fluctuation | ±1℃ | |||||
| Temperature Uniformity | ≤Max working temperature ±2.5℃ | |||||
| Inner Cyclic Mode | Forced convection with Back heating | Forced convection with Bottom heating | ||||
| Alarm Type | Over temperature alarm and Temperature probe damage alarm | |||||
|
Work Room Dimension WxDxH (cm) |
35*35*35 | 45*35*45 | 55*45*55 | 60*50*75 | 80*80*100 | 100*80*120 |
| Capacity(L) | 42 | 70 | 136 | 225 | 640 | 960 |
|
Outline Dimension WxDxH (cm) |
71*45*63 | 81*45*75 | 91*55*85 | 96*60*105 | 112*98*130 | 132*98*150 |
| Shelves | 2 | 2 | 3 | 3 | 3 | 3 |
| Rated Power (W) |
1600 HGZF-II 850 |
2400 HGZF-II 1550 |
3000 HGZF-II 2100 |
4000 HGZF-II 2500 |
6000 | 7500 |
| Power | 1Φ 220V 50Hz | 3Φ 380V 50Hz | ||||
