| Place of Origin: | China |
| Brand Name: | Hengzi |
| Certification: | CE |
| Model Number: | YJYC-100B/YJYC-100F/YJYC-200B/YJYC-200F |
| Minimum Order Quantity: | 5 units |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 pcs/CTN |
| Delivery Time: | 15-30 DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 10 UNITS PER 7 DAYS |
| Name: | Thermostatic Incubator Shaker Desktop YJYC | Control Mode: | P.I.D. Microprocessor |
|---|---|---|---|
| Convection Mode: | Forced Convection | USB Data Download Processing System: | Yes |
| Temperature Uniformity(℃): | ≤0.3(37℃, Working Side) | Capacity(L): | 70 |
| High Light: | lab shaker machine,laboratory shaker incubator |
||

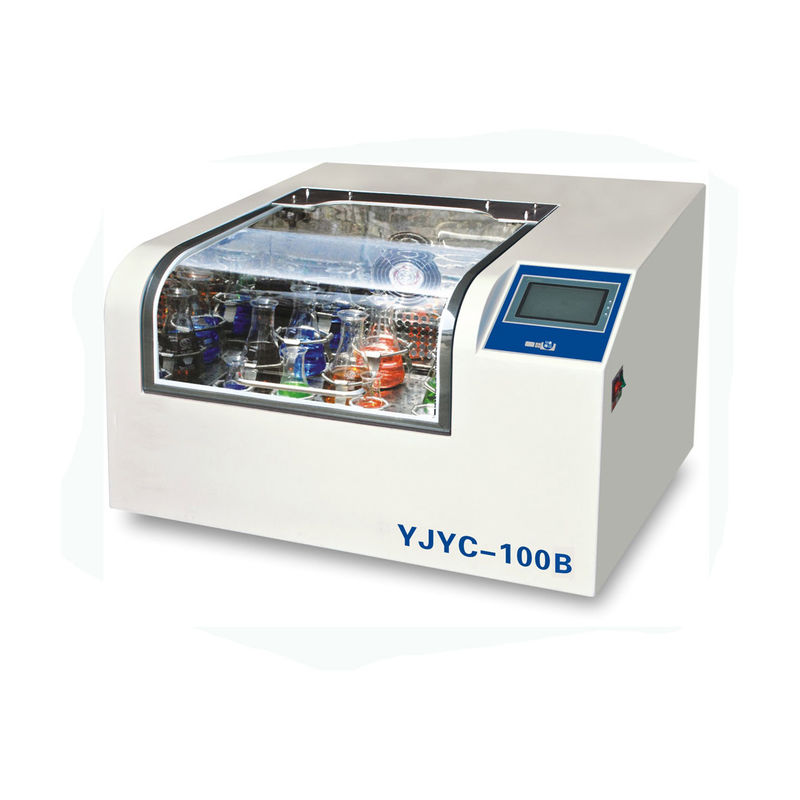

Thermostatic Incubator Shaker desktop YJYC
| Model | YJYC-100B | YJYC-100F | YJYC-200B | YJYC-200F |
| Control Mode | P.I.D. Microprocessor | |||
| Convection Mode | Forced convection | |||
| Oscillation Mode | Rotate | Reciprocate | Rotate | Reciprocate |
| Display Mode | 7 inches touch screen | |||
| Drive Mode | Single-dimensional drive | Track drive | Single-dimensional drive | Track drive |
| USB Data Download Processing System | Yes | |||
| Control System | Set-value mode; Multi-process control mode | |||
|
Cyclotron frequency Range (rpm/min) |
0；20-450 | 0；20-300 | 0；20-450 | 0；20-300 |
|
Cyclotron frequency Accuracy (rpm) |
±1 | |||
| Amplitude(mm) | Φ26 | 0-50 | Φ26 | 0-50 |
| Max Capacity | 100ml*23 or 250ml*15 or 500ml*9 or 1000ml*5 | |||
| Standard Capacity | 500ml*3 250ml*3 100ml*4 50ml*4 | 500ml*3 250ml*4 100ml*5 50ml*5 | ||
| Tray size(mm) | 450*410 | 410*360 | 450*410 | 410*360 |
| Timing Range(h) | 0-999.9 | |||
| Temperature Control Range(℃) | RT+5-60 | 4-60 | ||
| Temperature Accuracy(℃) | ±0.1 | |||
| Temperature Uniformity(℃) | ≤0.3(37℃, working side) | |||
| Temperature Fluctuation(℃) | ≤0.1(37℃) | |||
| Number of trays | 1 | |||
|
Outline Dimension WxDxH (mm) |
750*710*520 | |||
| Capacity(L) | 70 | |||
| Rated Power (W) | 550 | 650 | ||
| Power | AC220±10% 50-60hz | |||
| Environment Temperature Requirement(℃) | 5-30 | |||
| Additional Function |
|
|||
