| Place of Origin: | China |
| Brand Name: | Hengzi |
| Certification: | CE |
| Model Number: | YJY-100B/YJY-100F/YJY-200B/YJY-200F |
| Minimum Order Quantity: | 5 units |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 pcs/CTN |
| Delivery Time: | 15-30 DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 10 UNITS PER 7 DAYS |
| Name: | Desktop Thermostatic Incubator Shaker | Control Mode: | P.I.D. Microprocessor |
|---|---|---|---|
| Display Mode: | LCD | Control System: | Standard Mode; Continuous Mode |
| Timing Range(h): | 0-999.9 | Temperature Accuracy(℃): | ±0.1 |
| High Light: | lab shaker machine,laboratory shaker incubator |
||

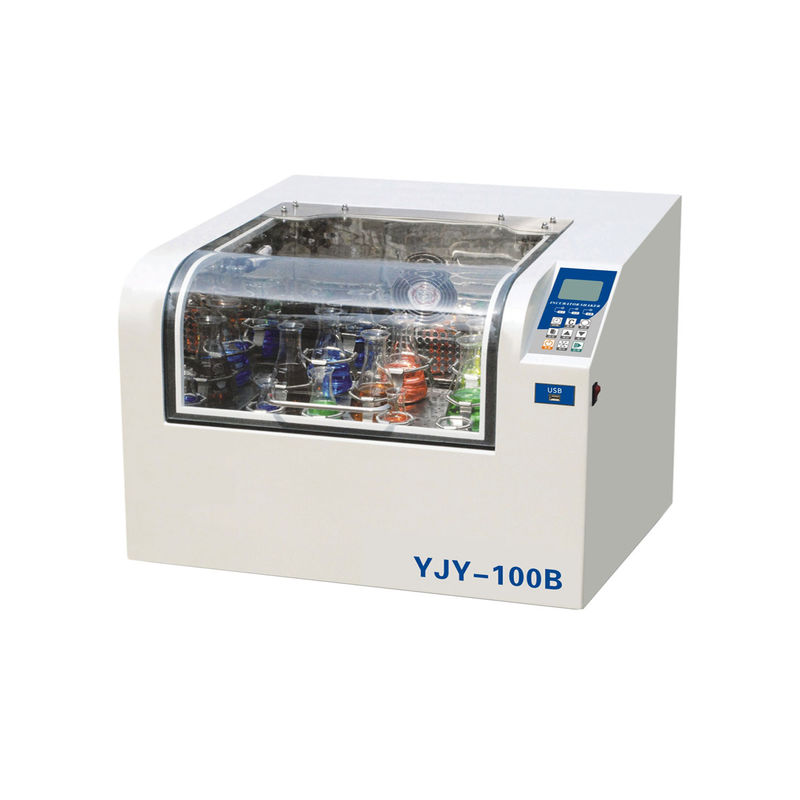

desktop Thermostatic Incubator Shaker
Structure Characteristics:
USB data system with large storage, automatic data record and store
Wireless U disk data download, instant and automatic
Data downloaded automatically saved as chart and can be printed
Experiment can be playback by mouse control
With touch screen, multi-process control system for rotating speed, temperature and time along with intermittent control system. Different rotating speed, temperature and time can be set at one time, running mode can be automatically switched in operation
Ultra low speed start, automatic lock when the rotating speed is out of control, adjustable starting speed
Adjustable closed loop heating and cooling system. Silent fan, forced convection and unique air duct make temperature uniformity and fluctuation in high level
Automatic cooling mode which can be switched automatically according to environment temperature
Intelligent cooling and frost-free operation, stable at low temperature for long time operation, Automatic defrost
Time, temperature and rotating speed displayed in one interface
Environment temperature and Monitoring temperature Correction
Rotating Speed Controller with high accuracy; P.I.D. feedback controller, precise and stable, accuracy at ±1rpm
Temperature Controller with high accuracy; P.I.D. feedback controller, accuracy at 0.1℃; Over and under temperature alarm with sound and light( Measured temperature deviated ±3℃ from the set value)
Unique drive system, smooth, stable, reliable and durable
Intelligent alarm system in light and sound with micro processing controller; stop when the door is open, self diagnosis and safety alarm
LCD display with big screen
Parameters auto saving system and automatic start after power interruption
Password lock for operation parameter
Unique motor over temperature alarm and temperature out of control automatic protection device
Scheduled operation and continuous operation, display operation time and remaining time in one interface
Unique slow start
Streamline and large observation windows, ABS cabinet, stainless steel lining and cavity assembly, tilt humanized control pad
With touch screen, time and date can be shown
Optional device: High temperature Shaker(up to 80℃) Humidity Shaker
| Model | YJY-100B | YJY-100F | YJY-200B | YJY-200F |
| Control Mode | P.I.D. Microprocessor | |||
| Convection Mode | Forced convection | |||
| Oscillation Mode | Rotate | Reciprocate | Rotate | Reciprocate |
| Display Mode | LCD | |||
| Drive Mode | Single-dimensional drive | Track drive | Single-dimensional drive | Track drive |
| USB Data Download Processing System | Yes | |||
| Control System | Standard mode; Continuous mode | |||
|
Cyclotron frequency Range (rpm/min) |
0；20-450 | 0；20-300 | 0；20-450 | 0；20-300 |
|
Cyclotron frequency Accuracy (rpm) |
±1 | |||
| Amplitude(mm) | Φ26 | 0-50 | Φ26 | 0-50 |
| Max Capacity | 100ml*23 or 250ml*15 or 500ml*9 or 1000ml*5 | |||
| Standard Capacity | 500ml*3 250ml*3 100ml*4 50ml*4 | 500ml*3 250ml*4 100ml*5 50ml*5 | ||
| Tray size(mm) | 450*410 | 410*360 | 450*410 | 410*360 |
| Timing Range(h) | 0-999.9 | |||
| Temperature Control Range(℃) | RT+5-60 | 4-60 | ||
| Temperature Accuracy(℃) | ±0.1 | |||
| Temperature Uniformity(℃) | ≤0.3(37℃, working side) | |||
| Temperature Fluctuation(℃) | ≤0.1(37℃) | |||
| Number of trays | 1 | |||
|
Outline Dimension WxDxH (mm) |
750*710*520 | |||
| Capacity(L) | 70 | |||
| Rated Power (W) | 550 | 650 | ||
| Power | AC220±10% 50-60hz | |||
| Environment Temperature Requirement(℃) | 5-30 | |||
| Additional Function |
|
|||
| Model | YJYC-100B | YJYC-100F | YJYC-200B | YJYC-200F |
| Control Mode | P.I.D. Microprocessor | |||
| Convection Mode | Forced convection | |||
| Oscillation Mode | Rotate | Reciprocate | Rotate | Reciprocate |
| Display Mode | 7 inches touch screen | |||
| Drive Mode | Single-dimensional drive | Track drive | Single-dimensional drive | Track drive |
| USB Data Download Processing System | Yes | |||
| Control System | Set-value mode; Multi-process control mode | |||
|
Cyclotron frequency Range (rpm/min) |
0；20-450 | 0；20-300 | 0；20-450 | 0；20-300 |
|
Cyclotron frequency Accuracy (rpm) |
±1 | |||
| Amplitude(mm) | Φ26 | 0-50 | Φ26 | 0-50 |
| Max Capacity | 100ml*23 or 250ml*15 or 500ml*9 or 1000ml*5 | |||
| Standard Capacity | 500ml*3 250ml*3 100ml*4 50ml*4 | 500ml*3 250ml*4 100ml*5 50ml*5 | ||
| Tray size(mm) | 450*410 | 410*360 | 450*410 | 410*360 |
| Timing Range(h) | 0-999.9 | |||
| Temperature Control Range(℃) | RT+5-60 | 4-60 | ||
| Temperature Accuracy(℃) | ±0.1 | |||
| Temperature Uniformity(℃) | ≤0.3(37℃, working side) | |||
| Temperature Fluctuation(℃) | ≤0.1(37℃) | |||
| Number of trays | 1 | |||
|
Outline Dimension WxDxH (mm) |
750*710*520 | |||
| Capacity(L) | 70 | |||
| Rated Power (W) | 550 | 650 | ||
| Power | AC220±10% 50-60hz | |||
| Environment Temperature Requirement(℃) | 5-30 | |||
| Additional Function |
|
|||
