Place of Origin: | China |
Brand Name: | Shenguang |
Certification: | ISO13485 ISO9001 CE |
Model Number: | DJC-G4R |
Minimum Order Quantity: | 20 |
---|---|
Price: | CNY 1500 |
Delivery Time: | 10-15 working days |
Payment Terms: | T/T |
Supply Ability: | 20 pc per week |

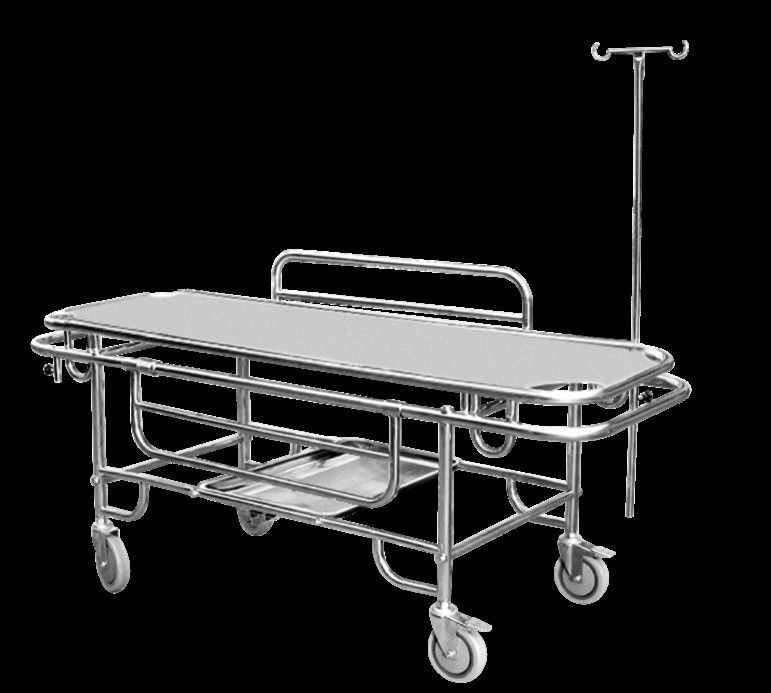

1. Main technical performance indexes:
Basic size: 1900×670×750mm, the error is ±10mm.
Safe working load of the stretcher: 1700N.
2, the type of the stretcher is divided into fixed. The frame structure is made of stainless steel. Stainless steel type is 304 # stainless steel, mainly choose the delta 1 mmsus304 stainless steel plate, Φ Χ 31.8 1.2, Φ Χ, Φ Χ 22.1 1.2, 1.2 25.4 Φ 16 Χ 1.2 SUS304 stainless steel tube; 5 "high quality polyurethane mute wheel; The lower layer is equipped with stainless steel square plates.
3. The parallelism error between the stretcher plane and the big frame of the frame should not be greater than 10mm.
4. The surface of the stretcher shall not have sharp edges, burrs, scars and other defects. The welding seam shall be uniform, and there shall not be burning damage, cold crack, leakage welding and other defects.
5. There should be no obvious wrinkle at the bend of the steel pipe.
6. The stretcher is portable to push, flexible to rotate, reliable to lock, and firmly assembled with casters.
7. The stretcher can be removed or placed easily from the frame, and it is firm after falling off. There should be no loosening or falling off.
8. The height of the infusion frame on the stretcher is adjustable, and the adjustment range is 500mm~1000mm. After bearing 49N load, it should not slide.
9. The casters rotate flexibly and are firmly assembled with the car feet. There are four casters, two of which have diagonal brakes.
10. The upper layer is soft.
