| Place of Origin: | China |
| Brand Name: | Hengzi |
| Certification: | CE |
| Model Number: | SX2-G/T |
| Minimum Order Quantity: | 5 units |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 pcs/CTN |
| Delivery Time: | 15-30 DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 10 UNITS PER 7 DAYS |
| Temperature Control Accuracy(℃): | ±1 | Temperature Controller: | P.I.D. Temperature Controller |
|---|---|---|---|
| Heating Rate: | G: ≤15℃/min T: ≤40℃/min | Application: | Labs, Industrial And Mining Enterprise |
| High Light: | resistance heating furnace,resistive heating element |
||

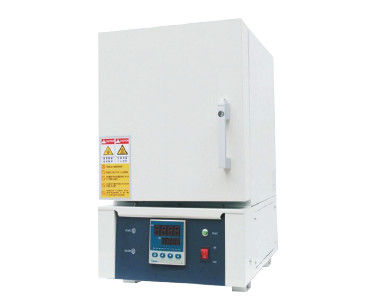

Resistance Furnace
Scope of Application:
This series of furnace is periodic operation type, used for element analysis and diagnosis in labs, industrial and mining enterprise, R&D institutions and heating during hardening, temper and anneal of small steel plates, as well as heating for sintering, dissolution and diagnosis of metal and ceramics, etc..
Structure Characteristics:
T series ceramic fiber (aluminum silicate fiber) furnace with low weight, fast heating rate, energy saving and time saving
G series refractory brick (alumina) furnace, traditional refractory brick material, wide range of application, long life and high cost value.
The 10G/T and 12G/T heating elements are made of steel flower brand furnace wire, which has high cost value, good stability and wide application range.
The 13G/T heating element uses silicon carbon rods for high cost value, good stability and wide application range.
The temperature control instrument adopts digital tube display and intelligent PID temperature controller. High precision, self-tuning, fault self-diagnostics and other functions.
Stainless steel armored thermocouple temperature sensor with high temperature measurement accuracy and long life.
It has a furnace door opening and closing protection system
It has the function of preventing the self-starting of the resistance furnace after the power supply line is powered off to avoid self-heating when unattended and cause other accidents.
Model suffix with P is integrated with 30-process programmable temperature controller
Model Specifications:
| Model | SX2-2.5-10G | SX2-4-10G | SX2-8-10G | SX2-12-10G | SX2-2.5-12G | SX2-5-12G | SX2-10-12G | SX2-12-12G | SX2-4-13G | SX2-4-13T |
| SX2-2.5-10T | SX2-4-10T | SX2-8-10T | SX2-12-10T | SX2-5-12T | SX2-10-12T | |||||
|
Work Room Dimension WxDxH (cm) |
20*12*8 | 30*20*12 | 40*25*16 | 50*30*20 | 20*12*8 | 30*20*12 | 40*25*16 | 50*30*20 | 25*15*10 | 25*15*10 |
| Capacity(L) | 2 | 7.2 | 16 | 30 | 2 | 7.2 | 16 | 30 | 3.7 | 3.7 |
| Set Temperature(℃) | 1000 | 1200 | ≤1300 | |||||||
| Using Temperature(℃) | ≤900 | ≤1100 | 1300 | |||||||
| Temperature Control Accuracy(℃) | ±1 | |||||||||
| Heating rate |
G: ≤15℃/min T: ≤40℃/min |
|||||||||
| Temperature Controller | P.I.D. temperature controller | |||||||||
| Thermocouple indexing number | K | S | ||||||||
| Power | AC220V 50/60Hz | AC380V 50Hz | AC220V 50/60Hz | AC380V 50Hz | AC220V 50/60Hz | |||||
| Rated Power (KW) | 2.5 | 4 | 8 | 12 | 2.5 | 5/4 | 10 | 12 | 4 | 4 |
|
Outline Dimension WxDxH (cm) |
63.4*40*62 | 69.8*52*67 | 81*57*76 | 98*70*86 | 63.4*40*62 | 69.8*52*67 | 81*57*76 | 98*70*86 | 67*57*71 | 67*57*71 |
