| Place of Origin: | China |
| Brand Name: | Hengzi |
| Certification: | CE |
| Model Number: | HGZ-GW |
| Minimum Order Quantity: | 5 units |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 psc/CTN |
| Delivery Time: | 15-30 DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 10 UNITS PER 7 DAYS |
| Timing Range: | 0-9999min | Name: | High Temperature Oven |
|---|---|---|---|
| Temperature Uniformity: | ±1℃ | Temperature Range: | 50℃-500℃ |
| Inner Cyclic Mode: | Natural Convection | Power: | 3Φ 380V 50Hz |
| High Light: | thermostatic drying oven,high temperature drying oven |
||

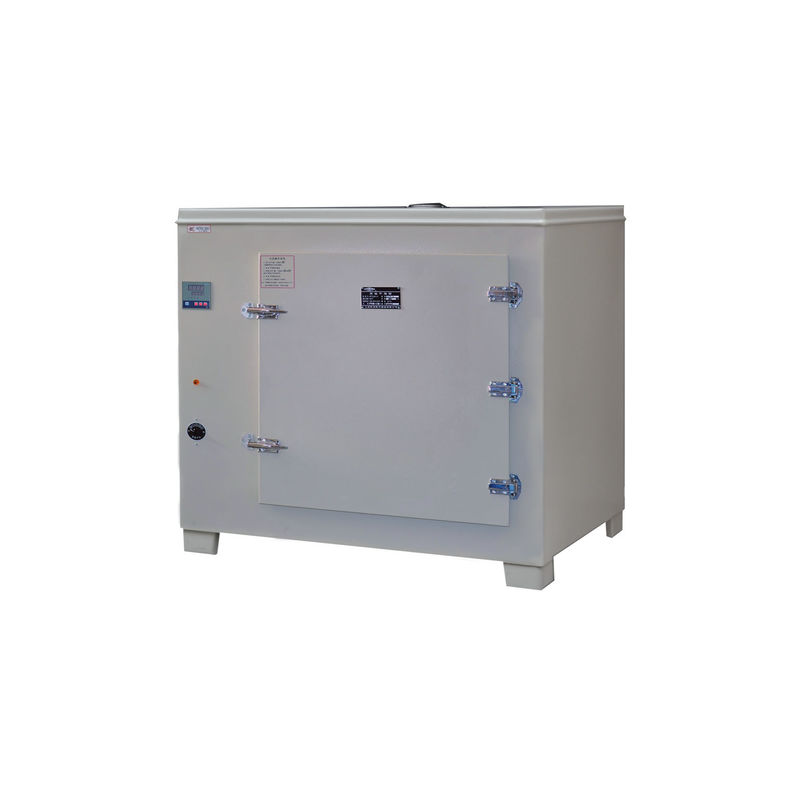

High Temperature Oven
Application range:
This equipment is used for drying, baking and disinfection in industrial and mining enterprises, chemical laboratory, R&D institution, etc.
This drying oven is suitable for heating, drying and heat treatment below 500℃. It is not suitable for drying of volatile items and flammable and explosive items.
Structure Characteristics:
Model Specifications:
| Model | HGZ-GW-130 | HGZ-GW-220 | HGZ-GW-640 |
| Temperature Range | 50℃-500℃ | ||
| Temperature Uniformity | ±1℃ | ||
| Temperature Fluctuation | ≤Max working temperature ±3.5% | ||
| Inner Cyclic Mode | Natural Convection | ||
| Alarm Type | Over temperature alarm and Temperature probe damage alarm | ||
|
Work Room Dimension WxDxH (cm) |
55*45*55 | 60*50*75 | 80*80*100 |
| Capacity(L) | 136 | 225 | 640 |
|
Outline Dimension WxDxH (cm) |
102*65*96 | 107*70*116 | 127*100*141 |
|
Package Dimension WxDxH (cm) |
117*84*108 | 122*89*128 | 147*119*153 |
| Shelves | 2 | 3 | 3 |
| Rated Power (W) | 6000 | 8000 | 12000 |
| Power | 3Φ 380V 50Hz | ||
