    Product Details:

    Place of Origin: China
    Brand Name: Hengzi
    Certification: CE
    Model Number: HYW/HYW-A

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 units
    Price: Negotiable
    Packaging Details: 1 pcs/CTN 83cm*101cm*212cm
    Delivery Time: 15-30 DAYS
    Payment Terms: T/T
    Supply Ability: 10 units per 7 days
    Contact Now
    Detailed Product Description
    Name: Medical Stability Test Chamber Inner Material: SUS304 Stainless Steel
    Outer Shell Material: Cold-rolled Steel Sheet Surface Spray Humidity Range: 40%-95%RH
    Temperature Uniformity: ±2℃ Humudity Uniformity: ±3%RH
    High Light:

    benchtop environmental chamber

    ,

    environmental testing machine

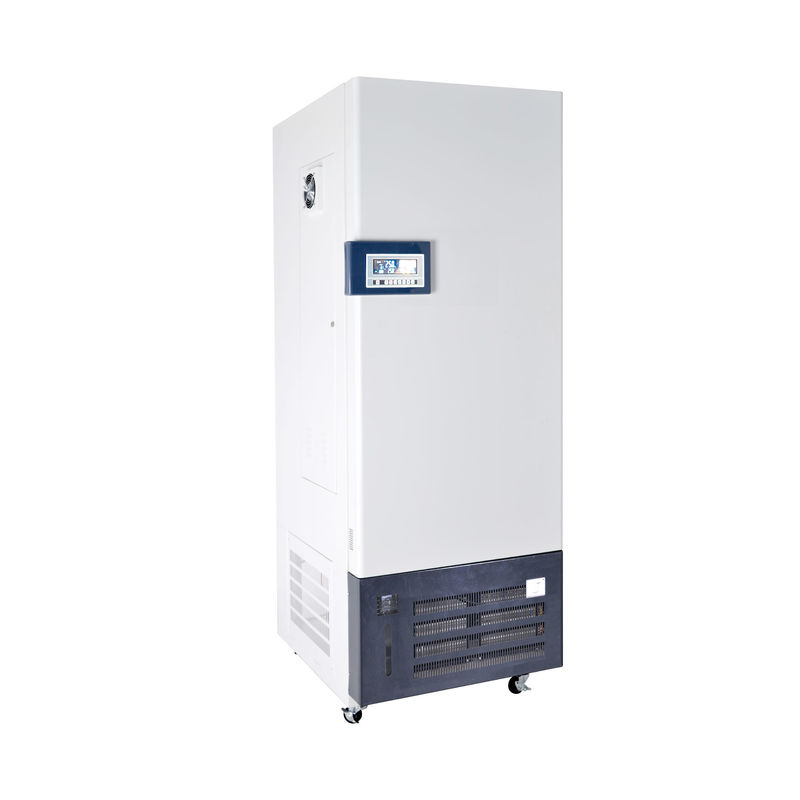

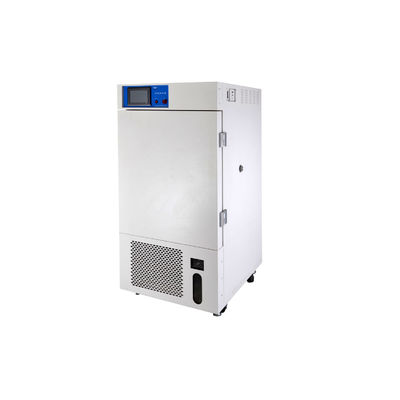

    Medicine Stability Test Chamber



    Scope of Application:

    This equipment provides the pharmaceutical enterprise with a long-time stable environment of temperature, humidity and illumination for medicine invalidation evaluation. It’s applied in the medicine accelerating test, growth test, high humidity test and high illuminance test.

    This equipment meets 2015 Pharmacopoeia regulations



    Structure Characteristics:

    • Outer Shell Material: Cold-rolled steel sheet surface spray
      Inner Material: SUS304 Stainless steel
    • Inner fans to make circular air convection for an even environment
    • Microprocessor PID temperature control, accurate and reliable
    • Parameters auto saving system and automatic start after power interruption
    • Inner round cornered design, convenient to clean
    • Shelves adjusted easily and flexiblely
    • Castors for easy movement
    • SECOP refrigeration compressor, effective and energy saving; Freon-free environment friendly refrigerator
    • Built-in water tank and automatic water supply interface
    • The Heating humidifier will be automatically shut down when there is no water for humidification
    • HYW Standarded with micro thermal printer
    • HYW-A with temperature and humidity controller which has:
    • Operation interface language can be chosen in Chinese or in English
    • Temperature and humidity real-time curve and 600-day data inquiry
    • 600-day data USB output
    • Remote monitoring by Ethernet
    • Option Devices
      Independent external temperature protection device
      Independent external temperature protection alarm module by SMS( not inculding the data flow card) which can be inquired by mobile APP
      HYW: USB data storage
      HYW: Micro pinhole printer
      HYW-A: Micro pinhole printer or micro thermal printer



    Model Specification:

    Model HYW-250 HYW-300 HYW-400 HYW-500 HYW-A120 HYW-A250 HYW-A500
    Temperature Range 0℃-+65℃ -20℃-+65℃
    Humidity Range 40%-95%RH
    Temperature Uniformity ±2℃
    Temperature Fluctuation ±0.5℃
    Humudity Uniformity ±3%RH
    Temperature and Humidity Display Accuracy 0.1℃/ 0.1%RH
    Temperature and Humidity Control Accuracy ±0.1℃/ ±0.1%RH
    Heating and Humidification Mode Built-in electric humidification sink
    Illumination Single-sided illumination 6000LX Single-sided illumination 4500LX
    Illumination Adjustment 5 levels adjustable 4 levels adjustable
    Inner Cyclic Mode Breeze stirring method
    Alarm Type

    Over temperature alarm

    Under temperature alarm

    Temperature probe damage alarm

    Humidity probe damage alarm

    Temperature and Humidity Controller LED display and P.I.D. controller LCD display and P.I.D. controller

    Work Room Dimension

    WxDxH (cm)

    47*46*118 49*47.5*128 56*60*120 66*65*120 45*45*60 60*60*80 70*80*90
    Capacity(L) 255 298 403 515 122 288 504

    Outline Dimension

    WxDxH (cm)

    66.5*88*182 68.5*89.5*192 75.5*102*184 85.5*107*184 60*95*157 75*110*177 85*130*187
    Shelves 2 2 2 2 2 2 2
    Rated Power (W) 2400 2900 3400 3900 2100 2600 3500
    Power 1Φ 220V 50Hz
