| Place of Origin: | China |
| Brand Name: | Hengzi |
| Certification: | CE |
| Model Number: | YJYC-103T/YJYC-203T |
| Minimum Order Quantity: | 5 units |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 pcs/CTN |
| Delivery Time: | 15-30 DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 10 DAYS PER 7 DAYS |
| Name: | Stackable Thermostatic Shaker With Small Capacity | Oscillation Mode: | Rotate |
|---|---|---|---|
| Convection Mode: | Forced Convection | Control Mode: | P.I.D. Microprocessor |
| Amplitude(mm): | Φ26 | Standard Capacity: | 500ml*21 |
| High Light: | shaker laboratory equipment,laboratory shaker incubator |
||

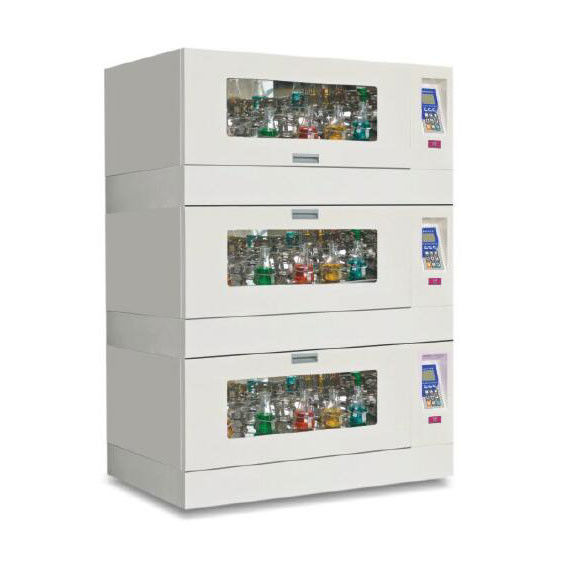

Stackable Thermostatic Shaker with small capacity
Stackable Thermostatic Shaker with small capacity
| Model | YJYC-103T | YJYC-203T |
| Control Mode | P.I.D. Microprocessor | |
| Convection Mode | Forced convection | |
| Oscillation Mode | Rotate | |
| Display Mode | 7 inches colorful touch screen | |
| USB Data Download Processing System | Yes | |
| Control System | Set-value mode; Multi-process control mode | |
|
Cyclotron frequency Range (rpm/min) |
0;20-300 | |
|
Cyclotron frequency Accuracy (rpm) |
±1 | |
| Amplitude(mm) | Φ26 | |
| Max Capacity | 250ml*32 or 500ml*21 or 1000ml*13 or 2000ml*7( for one shaker) | |
| Standard Capacity | 500ml*21 | |
| Tray size(mm) | 610*460 (for one shaker) | |
| Timing Range(h) | 0-999.9 | |
| Temperature Control Range(℃) | RT+5-60 | 4-60(at 25℃ Environment Temperature) |
| Temperature Accuracy(℃) | ±0.1 | |
| Temperature Uniformity(℃) | ≤0.8(37℃, working side) | |
| Temperature Fluctuation(℃) | ≤0.1(37℃) | |
|
Outline Dimension WxDxH (mm) |
1120*790*620(for one shaker) | |
| Capacity(L) | 174(for one shaker) | |
| Rated Power (W) | 1000(for one shaker) | 1200(for one shaker) |
| Power | AC220±10% 50-60hz | |
| Environment Temperature Requirement(℃) | 5-30 | |
Structure Characteristics
USB data system with large storage, automatic data record and store
Wireless U disk data download, instant and automatic
Data downloaded automatically saved as chart and can be printed
Experiment can be playback by mouse control
With touch screen, multi-process control system for rotating speed, temperature and time along with intermittent control system. Different rotating speed, temperature and time can be set at one time, running mode can be automatically switched in operation
Ultra low speed start, automatic lock when the rotating speed is out of control, adjustable starting speed
Adjustable closed loop heating and cooling system. Silent fan, forced convection and unique air duct make temperature uniformity and fluctuation in high level
Automatic cooling mode which can be switched automatically according to environment temperature
Intelligent cooling and frost-free operation, stable at low temperature for long time operation, Automatic defrost
Time, temperature and rotating speed displayed in one interface
Environment temperature and Monitoring temperature Correction
Rotating Speed Controller with high accuracy; P.I.D. feedback controller, precise and stable, accuracy at ±1rpm
Temperature Controller with high accuracy; P.I.D. feedback controller, accuracy at 0.1℃; Over and under temperature alarm with sound and light( Measured temperature deviated ±3℃ from the set value)
Unique drive system, smooth, stable, reliable and durable
Intelligent alarm system in light and sound with micro processing controller; stop when the door is open, self diagnosis and safety alarm
LCD display with big screen
Parameters auto saving system and automatic start after power interruption
Password lock for operation parameter
Unique motor over temperature alarm and temperature out of control automatic protection device
Scheduled operation and continuous operation, display operation time and remaining time in one interface
Unique slow start
Streamline and large observation windows, ABS cabinet, stainless steel lining and cavity assembly, tilt humanized control pad
With touch screen, time and date can be shown
Optional device: High temperature Shaker(up to 80℃) Humidity Shaker
