| Place of Origin: | China |
| Brand Name: | Hengzi |
| Certification: | CE |
| Model Number: | YJY-301/YJY-302/YJY-303 |
| Minimum Order Quantity: | 5 units |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 pcs/CTN |
| Delivery Time: | 15-30 DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 10 UNITS PER 7 DAYS |
| Name: | Shaker Water Bath | Control Mode: | P.I.D. Microprocessor |
|---|---|---|---|
| USB Data Download Processing System: | Yes | Cyclotron Frequency Range (rpm/min): | 0;20-300 |
| Standard Capacity: | Spring Cage | Number Of Trays: | 1 |
| High Light: | lab shaker machine,laboratory shaker incubator |
||

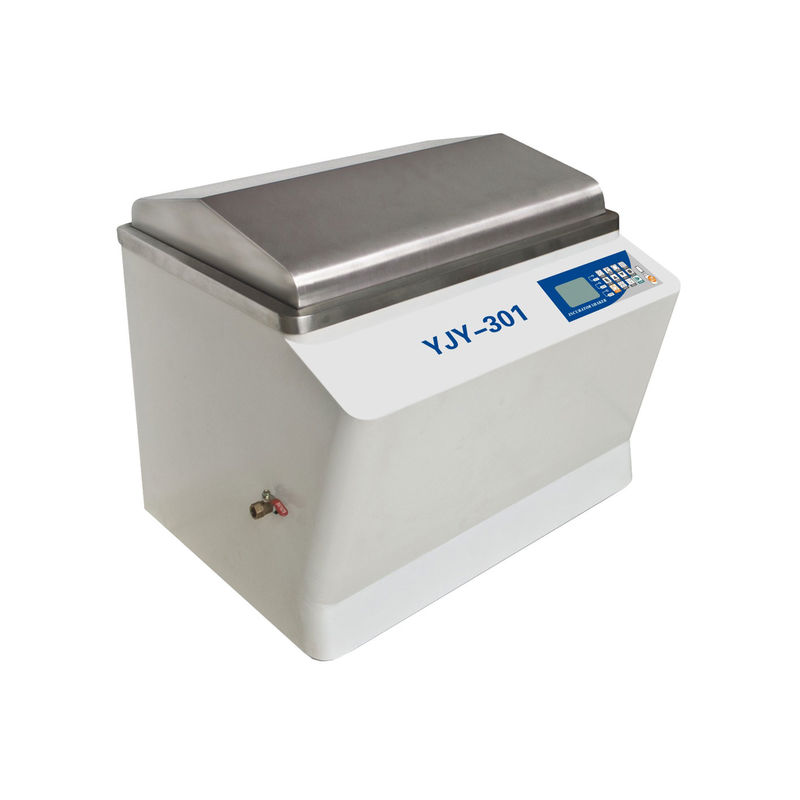

Shaker Water Bath
Structure Characteristics:
USB data system with large storage, automatic data record and store
Wireless U disk data download, instant and automatic
Data downloaded automatically saved as chart and can be printed
Experiment can be playback by mouse control
With touch screen, multi-process control system for rotating speed, temperature and time along with intermittent control system. Different rotating speed, temperature and time can be set at one time, running mode can be automatically switched in operation
Ultra low speed start, automatic lock when the rotating speed is out of control, adjustable starting speed
Time, temperature and rotating speed displayed in one interface
Rotating Speed Controller with high accuracy; P.I.D. feedback controller, precise and stable, accuracy at ±1rpm
Temperature Controller with high accuracy; P.I.D. feedback controller, accuracy at 0.1℃; Over and under temperature alarm with sound and light( Measured temperature deviated ±3℃ from the set value)
Unique drive system, smooth, stable, reliable and durable
Intelligent alarm system in light and sound with micro processing controller; stop when the door is open, self diagnosis and safety alarm
LCD or colorful touch screen with big screen and back light, Chinese subtitle; measured value, set value and operating status can be seen at one interface
Parameters auto saving system and automatic start after power interruption
Password lock for operation parameter
Unique motor over temperature alarm and temperature out of control automatic protection device
Scheduled operation and continuous operation, display operation time and remaining time in one interface
Unique slow start
Adjustable closed loop heating system, make temperature uniformity and fluctuation in high level
With touch screen, time and date can be shown
Model Specifications:
| Model | YJY-301 | YJY-302 | YJY-303 |
| Control Mode | P.I.D. Microprocessor | ||
| Oscillation Mode | Rotate | Rotate, Reciprocate | Reciprocate |
| Display Mode | LCD | ||
| Drive Mode | Multi-dimensional drive | Single-dimensional Track drive | Track drive |
| USB Data Download Processing System | Yes | ||
| Control System | Standard mode; Continuous mode; Process Control mode( multi-process for temperature, time and speed) | ||
|
Cyclotron frequency Range (rpm/min) |
0;20-300 | ||
|
Cyclotron frequency Accuracy (rpm) |
±1 | ||
| Amplitude(mm) | Φ26 | Φ26 or 26 | 26 |
| Max Capacity | 100ml*24 or 250ml*15 or 500ml*11 or 1000ml*6 | ||
| Standard Capacity | Spring cage | ||
| Tray size(mm) | 498*316 | ||
| Timing Range(h) | 0-999.9 | ||
| Temperature Control Range(℃) | Environment Temperature -100 | ||
| Temperature Accuracy(℃) | ±0.1 | ||
| Temperature Fluctuation(℃) | ≤0.1(37℃) | ||
| Number of trays | 1 | ||
|
Outline Dimension WxDxH (mm) |
640*620*550 | ||
| Rated Power (W) | 1400 | ||
| Power | AC220±10% 50-60hz | ||
| Environment Temperature Requirement(℃) | 5-30 | ||
| Additional Function |
Monitoring temperature Correction |
||
