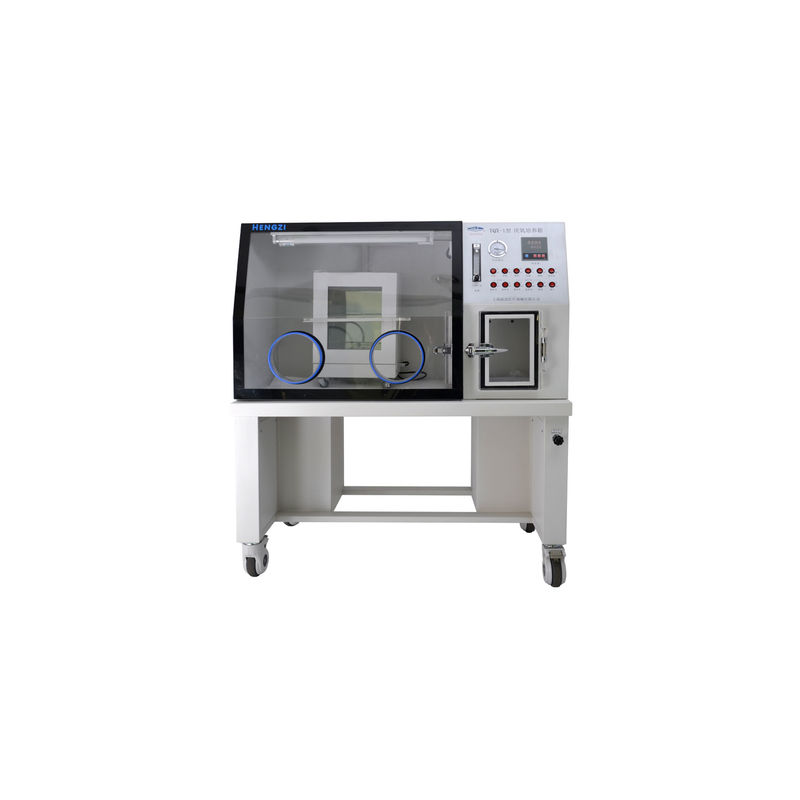

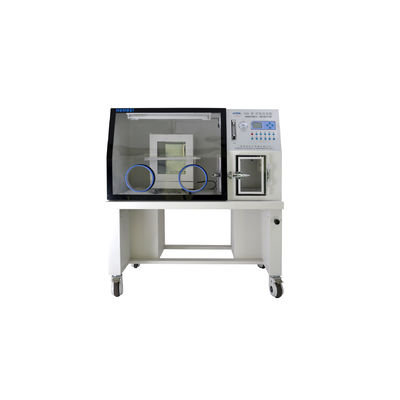

Operating Room Anaerobic Incubator Laboratory Equipment With Stainless Steel Chamber

Product Details:

Place of Origin:	China
Brand Name:	Hengzi
Certification:	CE
Model Number:	HYQX-I/II/III

Payment & Shipping Terms:

Minimum Order Quantity:	5 units
Price:	Negotiable
Packaging Details:	1 pcs/CTN
Delivery Time:	15-30 DAYS
Payment Terms:	T/T
Supply Ability:	10 UNITS PER 7 DAYS

Contact Now

Detailed Product Description

Material:	Stainless Steel 304	Temperature Uniformity:	≤±1℃
Temperature Fluctuation:	≤±0.3℃	Lasting Time For Anaerobic In Operating Room:	＞12H (Under The Circumstance When The Supply For Small Amout Of Mixed Gas Has Been Stopped)
Power:	1Φ 220V 50Hz	Warranty:	1 Year
High Light:	laboratory incubator , cell culture incubator

Anaerobic Incubator

Scope of Application:

This instrument is used to cultivate and handle anaerobic microbes in non-oxygen environment. It provides strict anaerobic condition, constant temperature condition and a systematic and scientific working area. The anaerobic organism which is the most difficult to cultivated can be cultivated in this instrument and can avoid the death of organism caused by being exposed to the atmosphere during operation.

This can be applied for medical institution in inspection and research of pathogenic anaerobic bacterium, microbiological examination brewing of food hygiene, and other hypoxia, microaerobic, or oxygen-free environment.

Structure Characteristics:

This product is consisted of thermostatic incubator, anaerobic operating room, sampling room, air and electricity control system, cabinet frames, bottle holders and wax-melting sterilizer
Strict anaerobic, micro-anaerobic and low anaerobic can be realized by using air in different composition
Microprocessor PID temperature control, accurate and reliable for work room temoerature
Inner UV germicidal lamp
Inner Material: SUS304 Stainless steel
Impact resistant special transparent glass plates used in anaerobic operating room and sampling room

Special gloves shall be used to operate

Special inoculation stick sterilizer, wax-melting disinfection device and oxygen removal catalyst in the anaerobic operating room
HYQXIII-Z: Cubigel refrigeration compressor, effective and energy saving; Freon-free environment friendly refrigerator
Optional device:

Independent external temperature protection device

RS485 communication serial port for HYQX-II and HYQX-III

Micro pinhole printer or micro thermal printer for HYQX-II and HYQX-III

Model Specification:

Model	HYQX-I	HYQX-II	HYQX-III	HYQX-III-Z
Work Room Temperature Range	Room Temperature +3℃-60℃			10℃-60℃
Temperature Uniformity	≤±1℃
Temperature Fluctuation	≤±0.3℃
Anaerobic Level	Oxygen Content in Opearating Room: ≤1%		Oxygen Content in Opearating Room: ≤0.5%
Forming Time for Anaerobic in Sampling Room	≤5min		≤15min
Forming Mode for Anaerobic( micro-anaerobic) in Sampling Room	Vacuum and Gas Replacing 99.99% N2 Vacuum and Mixed Gas ( 5%H2 10%CO2 85%N2)
Forming Operation for Anaerobic in Sampling Room	Manual Button		One-button Automatic
Forming Time for Anaerobic in Operating Room	≤1H		≤2H
Forming Mode for Aaerobic( micro-anaerobic) in Operating Room	Vacuum and Gas Replacing 99.99% N2 Vacuum and Mixed Gas ( 5%H2 10%CO2 85%N2)
Lasting Time for Anaerobic in Operating Room	＞12H (Under the circumstance when the supply for small amout of mixed gas has been stopped)
Forming Operation for Anaerobic in Operating Room	Manual Button		One-button Automatic
Work Room Dimension WxDxH (cm)	251929		423050	Operating Room is the Work Room
Capacity(L)	13		63	355 Operating Room is the Work Room
Sampling Room Dimension WxDxH (cm)	332332		403332
Opearting Room Dimension WxDxH (cm)	816566		957568	916560
Outline Dimension WxDxH (cm)	12673138		14073137
Temperature Controller	LED display and P.I.D. temperature controller	LCD display and P.I.D. temperature controller
Shelves	2	2	2	2
Rated Power (W)	600	600	730	1000
Power	1Φ 220V 50Hz
