| Place of Origin: | China |
| Brand Name: | Hengzi |
| Certification: | CE |
| Model Number: | HZK-Z/HZK |
| Minimum Order Quantity: | 5 units |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 pcs/CTN 25L-210L |
| Delivery Time: | 15-30 DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 10 UNITS PER 7 DAYS |
| Name: | Vacuum Dryer | Timing Range: | 0-9999min |
|---|---|---|---|
| Temperature Fluctuation: | ±1℃ | Vacuum Degree: | ＜133Pa |
| Power: | 1Φ220V 50Hz | Warranty: | 1 Year |
| High Light: | laboratory drying oven,thermostatic drying oven |
||

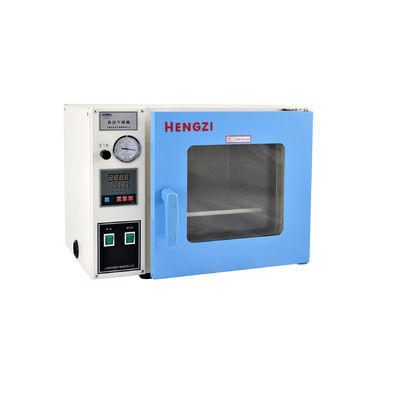

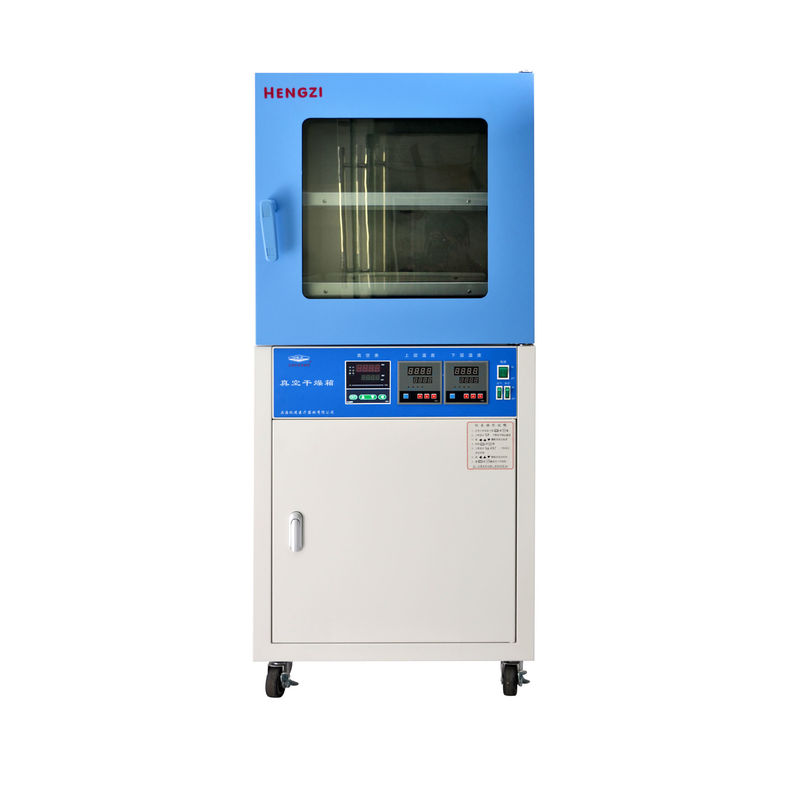

Vacuum Dryer
Scope of Application:
Vacuum drying oven is applied to dry and heat samples in the vacuum condition in the industrial and mining enterprises, medical institutions and research institutes.
Structure Characteristics:
Parameters auto saving system and automatic start after power interruption
Model specifications:
| Model | HZK-25 | HZK-55 | HZK-Z-90 | HZK-Z-210 | HZK-LC-90 | HZK-LC-210 |
| Teamperature Control Range | 50℃-200℃ | 50℃-250℃ | 50℃-200℃ | |||
| Temperature Fluctuation | ±1℃ | |||||
| Vacuum Degree | ＜133Pa | |||||
| Vacuum Degree Display | Pointer vacuum pressure gauge | Pointer vacuum pressure gauge, Spinning Adjustable Vacuum Degree | LCD Display, Touching Adjustable Vacuum Degree | |||
| Vacuum Degree Control | Manual | Automatic differential pressure control | Pressure Sensor, Deviation control | |||
| Vacuum Mode | Vacuum pump (User-owned) | Vacuum pump | ||||
| Work Room Dimension(CM) | 33*33*28 | 42*35*37 | 45*45*45 | 56*60*64 | 45*45*45 | 56*60*64 |
| Capacity(L) | 30 | 54 | 91 | 215 | 91 | 215 |
| Outline Dimension(CM) | 58*57*45 | 71*59*53 | 61*66*145 | 72*82*175 | 61*66*145 | 72*82*175 |
| Shelves | Aluminum*1 | Aluminum*2 | Fixed electric aluminum plate*2 | Fixed electric aluminum plate*3 | Fixed electric aluminum plate*2 | Fixed electric aluminum plate*3 |
| Rated Power(W) | 500 | 1400 | 1600 | 2200 | 1600 | 2200 |
| Power | 1Φ220V 50Hz | |||||
