| Place of Origin: | China |
| Brand Name: | Hengzi |
| Certification: | CE |
| Model Number: | HGZN/HGZN-II |
| Minimum Order Quantity: | 5 units |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 pca/CTN 20L-43L |
| Delivery Time: | 15-30 DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 10 UNITS PER 7 DAYS |
| High Light: | thermostatic drying oven,high temperature drying oven |
||
|---|---|---|---|

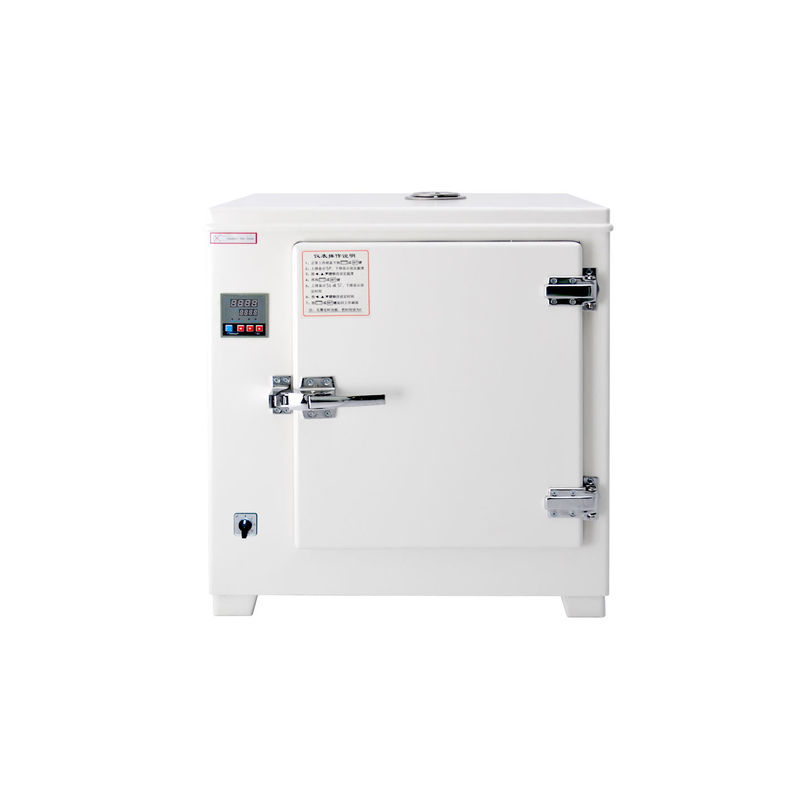

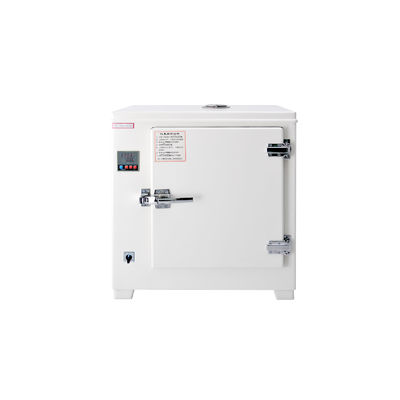

Electrothermal Thermostat Dryer
Application range:
This equipment is used for drying, baking and disinfection in industrial and mining enterprises, chemical laboratory, R&D institution, etc.
Structure Characteristics:

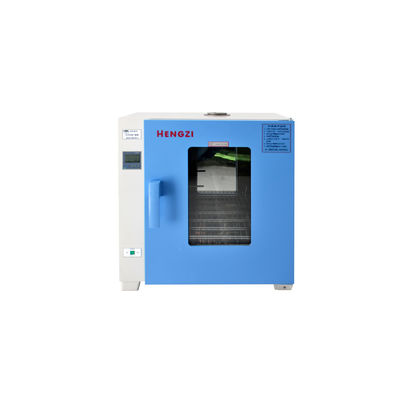

HGZN: Glass inner door and no Exterior door observation window
HDPN-II: No Glass inner door and Exterior door observation window
Microprocessor PID temperature control, accurate and reliable
Timing range: 0-9999min
Parameters auto saving system and automatic start after power interruption
Optional device:
Independent external temperature protection device
HGPN-II: LCD temperature controller
HGPN-II: LCD temperature conctoller and RS485 Communication serial port
HGPN-II: LCD temperature controller and Micro pinhole printer
HGPN-II: RS485 to USB Adapter
Model Specification:
| Model | HGZN-20 | HGZN-32 |
HGZN-72 HGZN-II-72 |
HGZN-138 HGZN-II-138 |
HGZN-270 HGZN-II-270 |
HGZN-II-43 |
| Teamperature Control Range | 50℃-200℃ | |||||
| Temperature Uniformity | ±1℃ | |||||
| Temperature Fluctuation | ≤Max Working Temperature ±3.5% | |||||
| Inner Cyclic Mode | Natural Convection | |||||
| Alarm Type | Over temperature alarm and Temperature probe damage alarm | |||||
| Work Room Dimension(CM) | 26*26*30 | 30*30*35 | 40*40*45 | 50*50*55 | 60*60*75 | 35*35*35 |
| Capacity(L) | 20 | 31 | 72 | 137 | 270 | 43 |
| Outline Dimension(CM) | 45*44*64 | 62*47*65 | 72*57*75 | 82*67*85 | 92*77*105 | 63*54*55 |
| Shelves | 2 | 2 | 2 | 3 | 3 | 3 |
| Rated Power(W) | 800 | 1200 |
HGZN: 1600 HGZN-II: 1000 |
2000 | 3000 | 850 |
| Power | 1Φ220V 50Hz | |||||
