| Place of Origin: | China |
| Brand Name: | Hengzi |
| Certification: | CE |
| Model Number: | HDPN/HDPF |
| Minimum Order Quantity: | 5 units |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 pcs/CTN 55L-270L |
| Delivery Time: | 15-30 DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 10 UNITS PER 7 DAYS |
| Temperature Control Range: | Room Temperature +5℃-60℃ | Power: | 1Φ 220V 50Hz |
|---|---|---|---|
| Alarm Type: | Over Temperature Alarm And Temperature Probe Damage Alarm | Inner Material: | SUS304 Stainless Steel |
| Outer Shell Material: | Cold-rolled Steel Sheet Surface Spray | Timing Range: | 0-9999min |
| High Light: | laboratory incubator,tissue culture incubator |
||

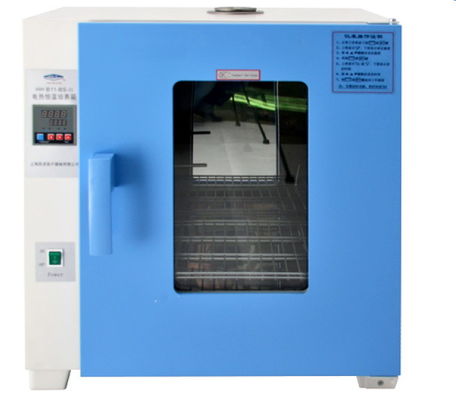

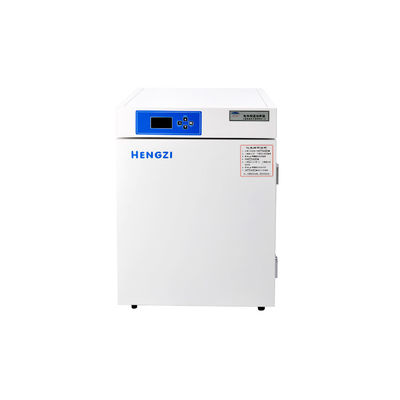

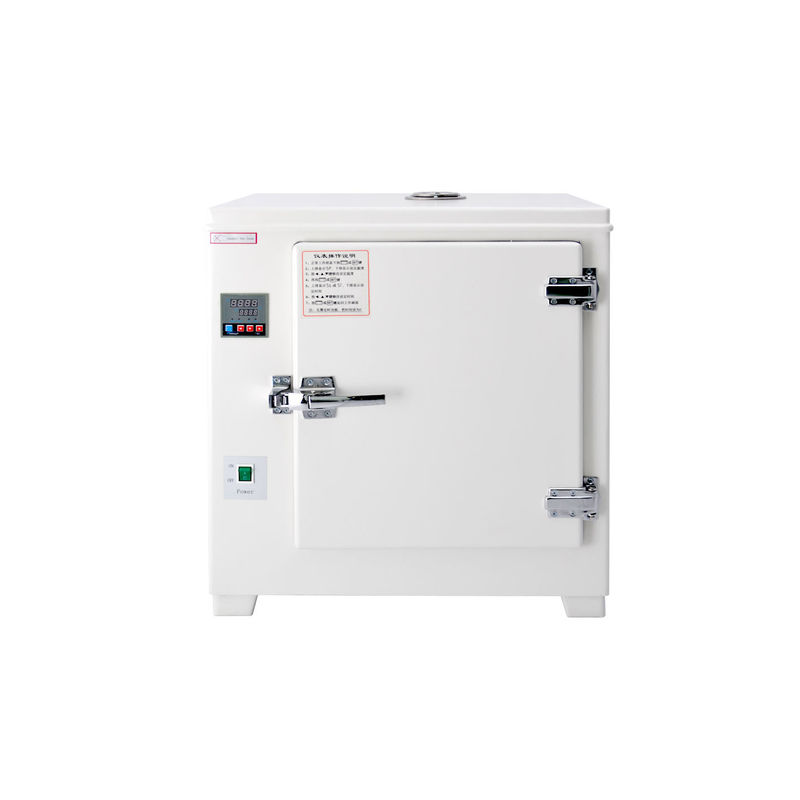

Electrothermal Thermostatic Incubator
Scope of Application:
This incubator, also known as electrothermal thermostatic cell (mildew), is applied in medical institutions, pharmaceutical industry, biochemistry, industrial production and agricultural science for bacterial incubation, breeding, fermentation and other thermostatic experiment.
Structure Characteristics:
Timing range: 0-9999min
Parameters auto saving system and automatic start after power interruption
Independent external temperature protection device
Independent external temperature protection alarm module by SMS( not inculding the data flow card) which can be inquired by mobile APP
Test orifice φ 35mm
RS485 communication serial port for HDPF
RS485 to USB Transfer interface for HDPF
Micro pinhole printer or micro thermal printer for HDPF
Model Specification:
| Model |
HDPN-55 HDPN-II-55 |
HDPN-88 HDPN-II-88 |
HDPN-150 HDPN-II-150 |
HDPN-256 HDPN-II-256 |
HDPF-20 | HDPF-55 | HDPF-88 | HDPF-150 | HDPF-256 |
| Temperature Control Range | Room temperature +5℃-60℃ | ||||||||
| Temperature Uniformity | ≤±1℃ | ≤±0.5℃ | |||||||
| Temperature Fluctuation | ≤±0.5℃ | ≤±0.3℃ | |||||||
| Heatin Mode | Bottom heating | Multi-dide heating | |||||||
| Inner Cyclic Mode | Natural Convection | Breeze stirring method | |||||||
| Alarm Type | Over temperature alarm and Temperature probe damage alarm | ||||||||
| Temperature Controller | LED display and P.I.D. controller | LCD display and P.I.D. controller | |||||||
|
Work Room Dimension WxDxH (cm) |
36*36*42 | 42*42*50 | 50*50*60 | 60*60*71 | 26*26*30 | 35*35*40 | 41*40.5*51 | 50.5*45.5*70 | 60*60*75 |
| Capacity(L) | 54 | 88 | 150 | 255 | 20 | 49 | 84 | 160 | 270 |
|
Outline Dimension WxDxH (cm) |
61*51*67 | 67*57*77 | 75*65*89 | 85*75*100 | 36*36*58 | 50*46*72 | 57*59*85 | 67*64*103 | 77*79*108 |
| Shelves | 2 | 2 | 3 | 3 | 2 | 2 | 2 | 3 | 3 |
| Rated Power (W) | 300 | 400 | 600 | 700 | 120 | 437 | 502 | 580 | 688 |
| Power | 1Φ 220V 50Hz | ||||||||
