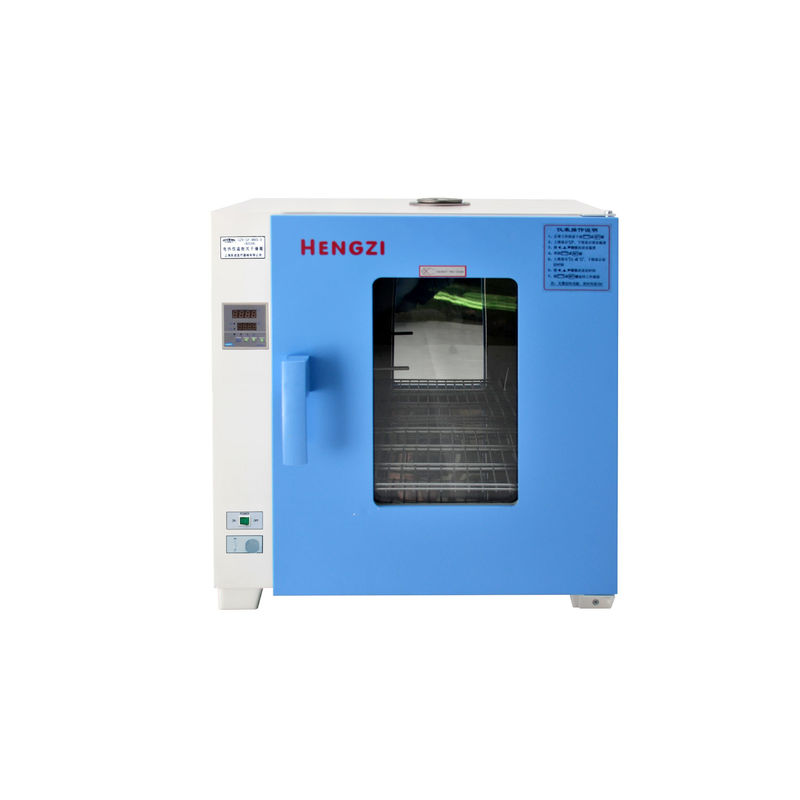

Desktop Electrothermal Fanned Drying Oven With Outer Observation Window

Desktop Electrothermal Fanned Drying Oven With Outer Observation Window

Desktop Electrothermal Fanned Drying Oven With Outer Observation Window

Product Details:

Place of Origin: China
Brand Name: Hengzi
Certification: CE
Model Number: HGZF

Payment & Shipping Terms:

Minimum Order Quantity: 5 units
Price: Negotiable
Packaging Details: 1 pcs/CTN
Delivery Time: 15-30 DAYS
Payment Terms: T/T
Supply Ability: 10 UNITS PER 7 DAYS
Contact Now
Detailed Product Description
Temperature Range: 50℃-200℃ Temperature Fluctuation: ±1℃
Temperature Uniformity: ≤Max Working Temperature ±2.5% Inner Cyclic Mode: Forced Convection
Temperature Controller: LED Display And P.I.D. Temperature Controller Power: 1Φ 220V 50Hz
High Light:

thermostatic drying oven


high temperature drying oven

Electrothermal Fanned Dryer Desktop

Application range:


This equipment is used for drying, baking and disinfection in industrial and mining enterprises, chemical laboratory, R&D institution, etc.


Structure Characteristics:

  • Outer Shell Material: Cold-rolled steel sheet surface spray
  • Inner Material: SUS304 Stainless steel
  • Microprocessor PID temperature control, accurate and reliable
  • Timing range: 0-9999min
  • Parameters auto saving system and automatic start after power interruption
  • Inner round cornered design, convenient to clean
  • Shelves adjusted easily and flexiblely
  • Inlet and outlet at back side
  • Outer observation window and no glass inner door
  • Stainless steel tube heater

Optional device:

HGZF: Independent external temperature protection device

HGZF: LCD display P.I.D. temperature controller or LCD display P.I.D. temperature controller with process

RS485 communication serial port

Micro pinhole printer

RS485 to USB Transfer interface



Model Specifications:

Model HGZF-9023 HGZF-9053 HGZF-9123 HGZF-9203
Temperature Range 50℃-200℃
Temperature Fluctuation ±1℃
Temperature Uniformity ≤Max working temperature ±2.5%
Inner Cyclic Mode Forced convection
Alarm Type Over temperature alarm, Timing alarm and Temperature probe damage alarm
Temperature Controller LED display and P.I.D. temperature controller

Work Room Dimension

WxDxH (cm)

30*30*28 42*37*35 55*36*55 60*55*64.5
Capacity(L) 25 54 108 212

Outline Dimension

WxDxH (cm)

58*50*45 71*56*53 83*61*72 88*78*82
Shelves 2 2 2 2
Rated Power (W) 650 1000 1600 2500
Power 1Φ 220V 50Hz
