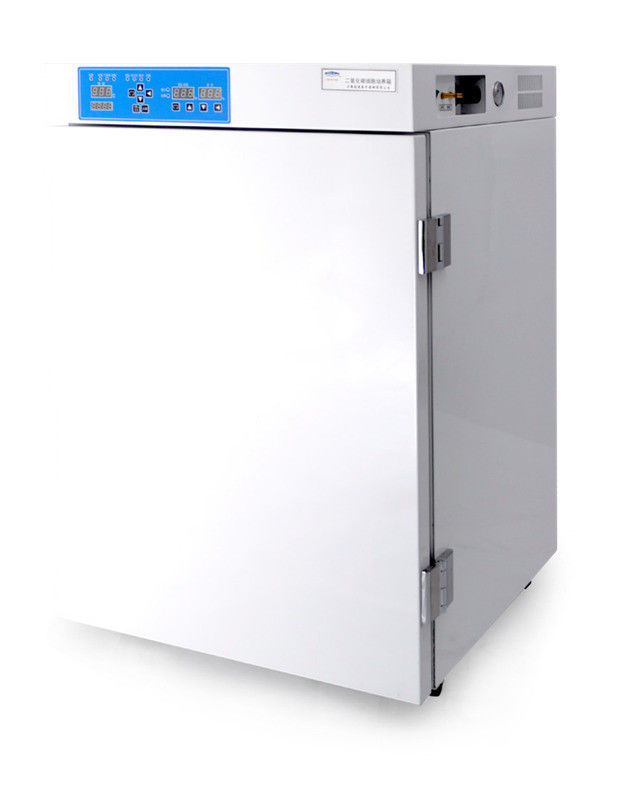

CO2 Cell Culture Incubator With 80L 160L Water - Jacket Or Air - Jacket

CO2 Cell Culture Incubator With 80L 160L Water - Jacket Or Air - Jacket

CO2 Cell Culture Incubator With 80L 160L Water - Jacket Or Air - Jacket

Product Details:

Place of Origin: China
Brand Name: Hengzi
Certification: CE
Model Number: HWJ/HAJ

Payment & Shipping Terms:

Minimum Order Quantity: 5 units
Price: Negotiable
Packaging Details: 1 pcs/CTN 79.5cm*78.5cm*120.2cm 115/80kg
Delivery Time: 15-30 days
Payment Terms: T/T
Supply Ability: 10 UNITS PER 7 DAYS
Contact Now
Detailed Product Description
Material: Stainless Steel 304 Temperature Uniformity: ≤±0.5℃
Temperature Fluctuation: ≤±0.5℃ Inner Cyclic Mode: Breeze Stirring Method
Sterilization Mode: UV Sterilizing Ultraviolet Rays Power: 1Φ 220V 50Hz
High Light:

cell culture incubator


tissue culture incubator

CO2 Cell Incubator


Scope of Application:

The CO2 cell incubator is designed specially to be used for animal cell and organization culture, as well as common microorganism culture. It is widely applied in medical institutes, life sciences, immunology, genetics, medicine, etc..


Structure Characteristics:

  • Outer Shell Material: Cold-rolled steel sheet surface spray
    Inner Material: SUS304 Stainless steel
    HWJ: Water-Jacket with high insulation
    HAJ: Air-Jacket with rapid heating
  • Inner fans to make circular air convection for an even environment( Temperature and CO2 Uniformity
  • Automatic Door Conctrol SystemAutomatic shut down the fun, CO2 intake value and heating system to prevent the contamination in the incubator by outer air and reduce energy and gas consumption
  • Precsie LED Display P.I.D. Temperature Controller
    HWJ: Three sets of temperature probes for cabinet, water and door
    HAJ: Two sets fof temperature probes for cabinet and door
  • HWJ-3 and HAJ-3: Imported Infrared carbon dioxide sensor applied during door frequent switching and the sensor will not be affected by temperature and humidity change
  • Optional device:
    Independent external temperature protection device
    Independent external temperature protection alarm module by SMS( not inculding the data flow card) which can be inquired by mobile APP


Model Specification:

Model HWJ: Water-Jacket HAJ: Air-Jacket











Temperature Control Range Room Temperature +5℃-60℃
Temperature Uniformity ≤±0.5℃
Temperature Fluctuation ≤±0.5℃
Humidity ≥85%RH
Humidification Mode Natural evaporation after put water into the Humidifying tray
Heating Mode HWJ: Four-side Water-jacket Heating; HAJ: Four-side Heating
Inner Cyclic Mode Breeze stirring method
Sterilization Mode UV Sterilizing ultraviolet rays
CO2 Concentration Control Range 0-20%
Temperature Display Accuracy 0.1℃
Temperature Control Accuracy ±0.1℃
CO2 Concentration Display Accuracy - ±0.1%
CO2 Concentration Control Accuracy - ±0.1%
CO2 Concentration Fluctuation - ≤±0.1%
CO2 Concentration Control Mode Gas distribution and flow control Infrared concentration sensor and The electromagnetic valve start and stop mode
Alarm Type Over temperature alarm, Temperature probe damage alarm and Water shortage alarm Over temperature alarm, Temperature probe damage alarm, Water shortage alarm and CO2 concentration alarm

Work Room Dimension

WxDxH (cm)

41*40.5*51 50.5*45.5*70 41*40.5*51 50.5*45.5*70 60*60*75
Capacity(L) 84 160 84 160 270

Outline Dimension

WxDxH (cm)

57*59*93 67*64*111 57*59*85 67*64*103 76.5*78.5*108
Shelves 2 3 2 3 3
Rated Power (W) 600 900 550 750 1200
Power 1Φ 220V 50Hz
