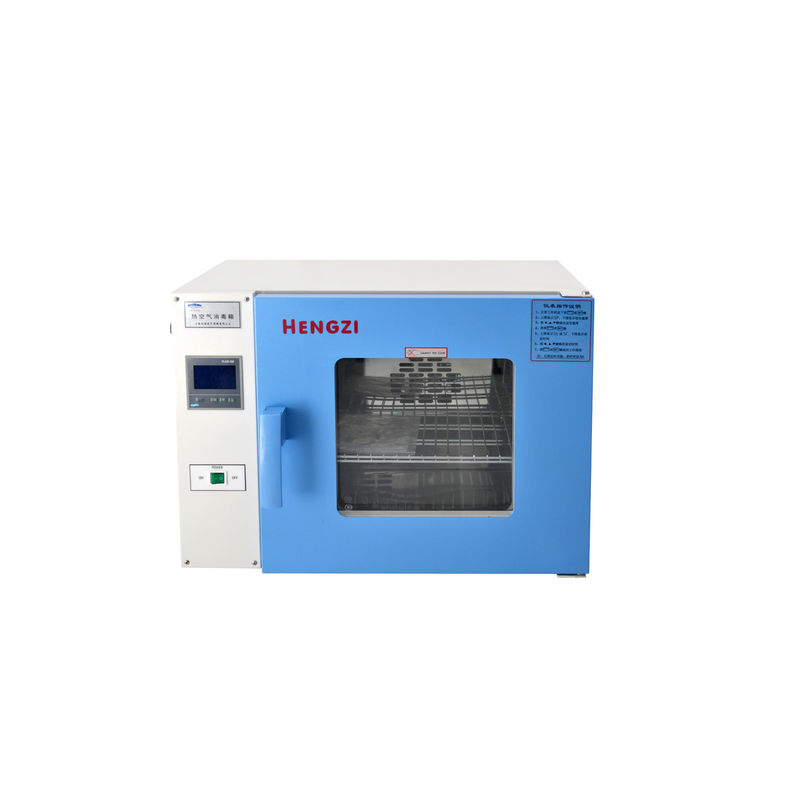

220V 50Hz Dry Heat Sterilizer , Hot Air Sterilization Box For Mining Enterprises

220V 50Hz Dry Heat Sterilizer , Hot Air Sterilization Box For Mining Enterprises

220V 50Hz Dry Heat Sterilizer , Hot Air Sterilization Box For Mining Enterprises

Product Details:

Place of Origin: China
Brand Name: Hengzi
Certification: CE
Model Number: HGRF

Payment & Shipping Terms:

Minimum Order Quantity: 5 units
Price: Negotiable
Packaging Details: 1 pcs/CTN 25L-212L
Delivery Time: 15-30 DAYS
Payment Terms: T/T
Supply Ability: 10 UNITS PER 7 DAYS
Contact Now
Detailed Product Description
Timing Range: 0-9999min Temperature Fluctuation: ±1℃
Inner Cyclic Mode: Forced Convection Temperature Uniformity: ≤Max Working Temperature ±2.5%
Power: 1Φ 220V 50Hz Warranty: 1 Year
High Light:

thermostatic drying oven


high temperature drying oven

Hot air sterilization box/ Dry heat sterilizer

Application range:


This equipment is used for drying, baking and disinfection in industrial and mining enterprises, chemical laboratory, R&D institution, etc.


Structure Characteristics:

  • Outer Shell Material: Cold-rolled steel sheet surface spray
  • Inner Material: SUS304 Stainless steel
  • Microprocessor PID temperature control, accurate and reliable
  • Timing range: 0-9999min
  • Parameters auto saving system and automatic start after power interruption
  • Inner round cornered design, convenient to clean
  • Shelves adjusted easily and flexiblely
  • Inlet and outlet at back side
  • Outer observation window and no glass inner door
  • Stainless steel tube heater

Optional device:

RS485 communication serial port

Micro pinhole printer

RS485 to USB Transfer interface



Model Specifications:

Model HGRF-9023 HGRF-9053 HGRF-9073 HGRF-9123 HGRF-9203
Temperature Range Room Temperature +10℃-250℃
Temperature Fluctuation ±1℃
Temperature Uniformity ≤Max working temperature ±2.5%
Inner Cyclic Mode Forced convection
Alarm Type Over temperature alarm, Timing alarm and Temperature probe damage alarm
Temperature Controller LCD display and P.I.D. temperature controller

Work Room Dimension

WxDxH (cm)

30*30*28 42*37*35 45*45*45 55*36*55 60*55*64.5
Capacity(L) 25 54 91 108 212

Outline Dimension

WxDxH (cm)

58*50*45 71*56*53 74*64*63 83*61*72 88*74*82
Shelves 2 2 2 2 2
Rated Power (W) 650 1000 1500 1600 2450
Power 1Φ 220V 50Hz
